Building a Variant

PFC is meant to be a base. To make your own propeller aircraft, depend on the core and build a prefab the same way the Cessna does, then add only the systems your aircraft needs.

1. Add PFC as a dependency

In your mod's addon.gproj, add the PFC GUID to Dependencies:

Dependencies {
  "69A8A34027DA65C5"   // Propeller flight core
  // ...the base game dependency is pulled in transitively
}

This makes all PFC_* classes and the merged input actions available to your mod.

2. Create the aircraft prefab

Create a prefab inheriting Wheeled_Base.et and add the core components (mirror the Cessna setup):

  1. MeshObject → your aircraft model.
  2. PFC_FlightController - tune the slew rates / m_fGroundSteerScale for your airframe.
  3. PFC_FlightModel - set engine count/thrust, then define your aero surfaces in m_aSurfaceDefs.

3. Lay out the aero surfaces

Place a PFC_AeroSurfaceDef for each lifting/control surface. Start from the Cessna values and scale to your aircraft:

  • Main wing - m_iControlAxis NONE, m_bMirror 1, set m_fAspectRatioOverride to the real wing AR.
  • Ailerons - AILERON, m_bMirror 1, out near the wingtips (large X) for roll authority.
  • Elevator - ELEVATOR, m_bMirror 1, well aft (large −Z) for pitch authority.
  • Rudder - RUDDER, m_bMirror 0, m_vRotation 0 0 90 (vertical surface), aft.
  • Fuselage side - NONE, vertical, low lift slope + low efficiency, for yaw/side damping.

Tune with debug draw on

Enable F6 → Prop Flight → Debug draw (or set m_bDebugDraw) to see each surface's position, extent, and live force vector. Use Setup approach to jump straight to altitude and test handling.

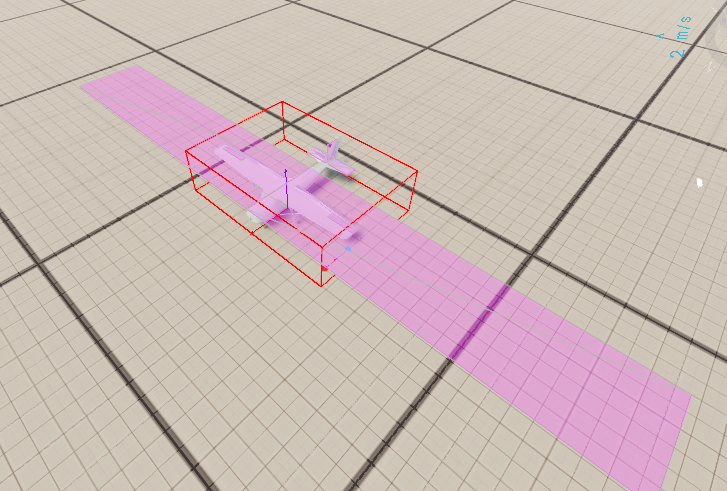

A new airframe with its aero surface extents drawn in debug

4. Add your own systems on top

The core deliberately stops at flight. Anything else is a component you add to your prefab - for example:

  • Gear / flap / trim controllers that drive their own surfaces or animation variables.
  • A start sequence, fuel, or systems controller (the core's engine is always on).
  • Cockpit instruments / a custom HUD reading the instrument signals.
  • Cargo, weapons, lights, etc.

Follow the core's networking patterns when you do: owner-authoritative changes via RPC, and guard per-tick RPCs / MP-signal writes on a valid Rpl id (see Networking & MP).

5. Wire control hints (optional)

If you add actions, extend Configs/ControlHints/AvailableActions.conf - and remember the base-GUID rule applies to both the input config and the control-hints config (see Input & Controls).
